Model LH NFPA Low Pressure Hydraulic Cylinders |
|
|
"Selecting End Cap Hydraulic Supply Port Locations" |
|
The purpose of this configurator screen is to identify the “Head End” (Front End Cap) and "Cap End" (Rear End Cap) side locations that require hydraulic supply ports. A hydraulic supply port may be located on any one, two, three or four of the four sides of the square end cover of the cylinder that is not resticted by the cylinder mount. When selecting the port location, one must always view the cylinder through the front of the “Head End” (also referred to as the "Rod End") even when selecting the port location on the "Cap End". The illustrations below provide an explanation on how to view the cylinder for making the port location(s) decision. When selecting Port Locations for Double Rod End Cylinders, please contact Peninsular. |
|
|
End Cap Hydraulic Supply Port Location Charts |
|

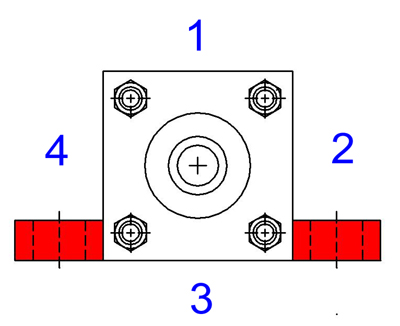

| End Cap Side Positions |

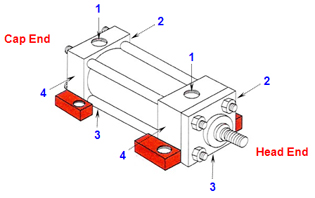

View of a Side Foot Lug Mounting Style cylinder (MS2) showing both the Front & Rear End Caps with Hydraulic Supply Ports at Positions #1.
Arrows are pointing to the End Cap Side Locations |
|
For any cylinder mount, always view the Cylinder through the Front End Cap when determining the Hydraulic Supply Port location(s) for both the Front and Rear End Caps. |
|
 |
 |
|
We recommend that you also reference our “Helpful Hint” regarding "Port Types".
If you need any assistance please feel free to call us toll free at (800) 526-7968 in the USA or Canada or at (586) 775-7211. You may also e-mail us at sales@peninsularcylinders.com.
|
|
|
